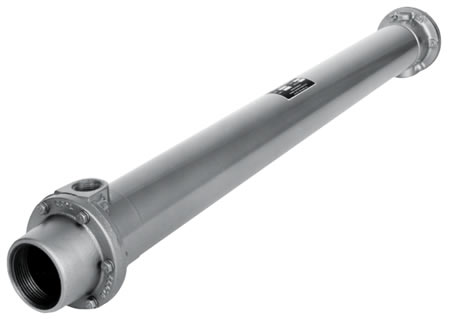

Pipeline Aftercoolers

for Compressed Air Cooling




Features:


  Strong Steel Conctruction
  Priced Competetively
  Removable Bonnets for Servicing
  Two or Four Pass Configurations
  Available in CuNi or Stainless Steel Tubes, Cast Iron, Bronze, or S/S Bonnets.



Ratings:


  Maximum Shell Pressure 300 PSI
  Maximum Tube Pressure 250 PSI
  Maximum Temperature 300 F



Materials & Options:


  Copper Tubes, Cast Iron Bonnets, Steel Tubesheet and Shell Standard
  Brass Baffles
  Steel Shell Connections
  Nitrile Rubber/ Cellulose Fiber Gaskets
  Optional Material for Tubesheets, Tubes, and End Bonnets

Water Cooled Aftercoolers

Air Duct Heaters Water Cooled Aftercoolers



AB Series Aftercoolers


  Overall Length Shell Diameter Air Connection Size Model
  33.36 2.12 1.5 AB-403-A4-O
  42.36 2.12 1.5 AB-404-A4-O
  51.36 2.12 1.5 AB-405-B4-O
  50.40 3.66 2.5 AB-705-B4-O
  59.6 5.12 3.0 AB-1006-B6-O
  60.25 6.12 3.0 AB-1206-C6-O
  69.25 6.12 3.0 AB-1207-C6-O
  62.62 8.0 5.0 AB-1606-C6-O
  71.62 8.0 5.0 AB-1607-D6-O
  80.62 8.0 5.0 AB-1608-D6-O

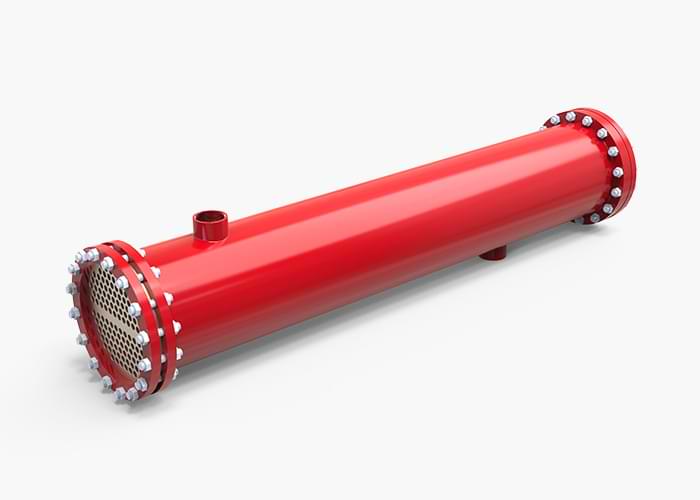

HC Series Aftercoolers


  Diameter

3.25"

4.25"

5.25"

6.25"

8.62"


  C-614-1.3-4-O
  C-614-3-4-O
  C-624-1.3-4-O
  C-624-2-4-O
  C-624-3-4-O
  C-814-1.3-4-O
  C-814-1.7-4-O
  C-814-2-4-O
  C-814-3-4-O
  C-814-4-4-O
  C-824-1.7-4-O
  C-824-2.5-4-O
  C-824-2-4-O
  C-824-4-4-O
  C-836-1.7-4-O
  C-836-2-4-O
  C-836-4-4-O

  C-1014-1.3-6-O
  C-1014-2-6-O
  C-1014-3-6-O
  C-1014-5-6-O
  C-1024-2-6-O
  C-1024-4-6-O
  C-1024-5-6-O
  C-1036-2.5-6-O
  C-1036-2-6-O
  C-1036-4-6-O
  C-1036-5-6-O

  C-1224-2.5-6-O
  C-1224-2-6-O
  C-1224-3.6-6-O
  C-1224-4-6-O
  C-1224-5-6-O
  C-1224-6-6-O
  C-1236-2.5-6-O
  C-1236-4-6-O
  C-1236-5-6-O
  C-1236-6-6-O
  C-1248-2.5-6-O
  C-1248-3-6-O
  C-1248-6-6-O
  C-1248-8-6-O
  C-1260-2.5-6-O
  C-1260-2.5-6-O
  C-1260-3.6-6-O
  C-1260-4.5-6-O
  C-1260-6-6-O

  C-1724-3.5-6-O
  C-1724-3-6-O
  C-1724-5-6-O
  C-1724-8.4-6-O
  C-1736-3.5-6-O
  C-1736-4-6-O
  C-1736-6-6-O
  C-1736-8.4-6-O
  C-1748-12-6-O
  C-1748-2.5-6-O
  C-1748-3.5-6-O
  C-1748-4-6-O
  C-1748-7-6-O
  C-1748-8.4-6-O
  C-1760-3.5-6-O
  C-1760-4.5-6-O
  C-1760-6-6-O
  C-1760-7-6-O
  C-1760-8.4-6-O
  C-1772-3.5-6-O
  C-1772-4.5-6-O
  C-1772-6-6-O
  C-1772-8.4-6-O
  C-1772-8-6-O





Quotes, Sales & Ordering Information:
Water Cooled Aftercoolers, please contact us: 1-888-226-8522
