AB Series: AB-1608-D6-O

Water Cooled Compressor Aftercoolers



Model:


Part Number: AB-1608-D6-O
Description: Water Cooled Aftercooler

Construction & Materials:


Tube Material: Copper
Shell Material: Brass
End Bonnets: Cast Iron
Baffles: Brass
*Optional CuNi or Stainless Steel Available

Ratings:


Maximum Operating Pressure:
Tubes (compressed air): 250 PSI
Shell (water): 250 PSI

Maximum Operating Temperature: 350° F

Recommended for 625 HP Rotary Screw Compressors
with a Maximum 3170 SCFM

Recommended for 705 HP 2-Stage Compressors
with a Maximum 2800 SCFM

Features:


Priced Competitively
Removable Bonnets for Servicing


AB-1608-D6-O


AB-1608-D6-O is a water cooled shell and tube aftercooler used to cool compressed air.

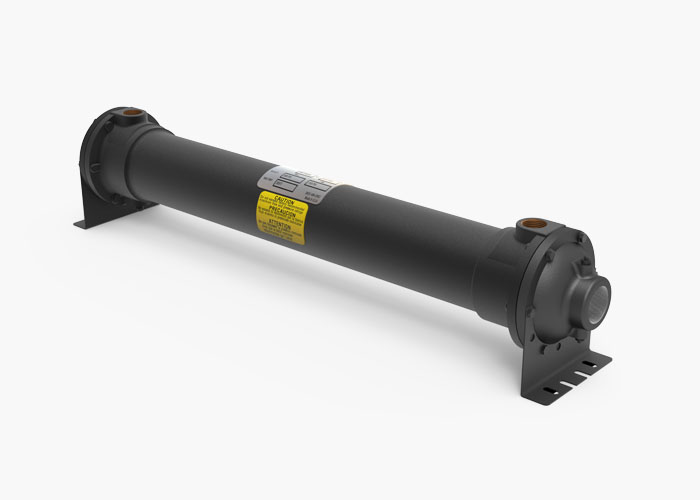

Note: Picture is an image of a stock unit and may not exactly depict the part number represented on this page.

AB-1608-D6-O Aftercooler Drawing AB-1608-D6-O Drawings


Quotes, Sales & Ordering Information:
Water Cooled Aftercoolers, please contact us: 1-888-226-8522

Water Cooled Aftercooler
